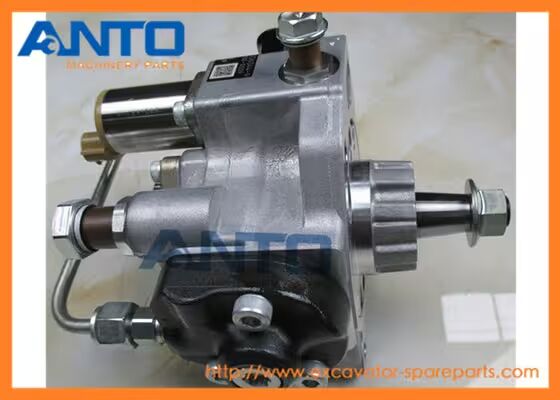

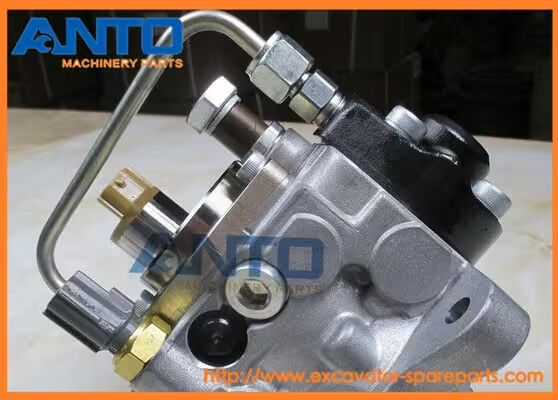

- 8973060449 8-97306044-9 294000-0033 294000-0039 Fuel Injection Pump Excavator Engine Parts For 4HK1
| Name |
Fuel Injection Pump |
| Parts No |
8973060449 8-97306044-9 294000-0033 294000-0039 |
| Engine Model |
4HK1 |
| egory |
Engine Parts, Fuel Injection System |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.High-Pressure Generation: Builds and maintains extremely high fuel pressure (typically over 1,600 bar) required for common-rail injection. |
| 2.Precision Fuel Metering: Delivers an exact amount of fuel to each cylinder based on engine load, speed, and ECU commands. |
| 3.Timing Control: Synchronizes fuel delivery with the engine’s combustion cycle for optimal power and efficiency. |
| 4.Fuel Supply: Draws fuel from the tank, filters it, and feeds it to the common rail and injectors. |
EG70R-3 MA200 SR2000G ZH200-A ZH200LC-A ZR125HC ZR950JC ZX170W-3 ZX170W-3-AMS ZX170W-3DARUMA ZX190W-3 ZX190W-3-AMS ZX190W-3DARUMA ZX190W-3M ZX200-3 ZX200-3F ZX210-3-AMS ZX210-3-HCME ZX210H-3 ZX210K-3 ZX210L-3 ZX210N-3-AMS ZX210N-3-HCME ZX210W-3 ZX210W-3-AMS ZX210W-3DARUMA ZX220W-3 ZX225US-3 ZX225US-3-HCME ZX225USR-3 ZX225USR-3-HCME ZX225USRK-3 ZX225USRL-3 ZX240-3 ZX240-3-AMS ZX240N-3-HCME ZX250H-3 ZX250K-3 ZX250L-3 ZX250LC-3-HCME ZX250LC-5B ZX250LCN-5B ZX250W-3 ZX270-3 ZX280L-3 ZX280LC-3 ZX280LC-3-HCME ZX280LCH-3 ZX290LC-5B ZX290LCN-5B ZX360W-3
- More other pump parts fit for excavator
| 6152-72-1442 INJECTION PUMP ASS'Y |
| SA6D125E, WA450, WA470 |
| |
| YM123901-59840 INJECTION PIPE N. 4 |
| PC110R, PW110R, WB140, WB140PS, WB150, WB150AWS, WB150PS, WB150WSC, WB93R, WB97R, WB97S, WB98A |
| |
| YM123901-59830 INJECTION PIPE N. 3 |
| PC110R, PW110R, WB140, WB140PS, WB150, WB150AWS, WB150PS, WB150WSC, WB93R, WB97R, WB97S, WB98A |
| |
| 6151-71-1650 INJECTION PUMP ASS'Y |
| S6D125 |
| |
| 6151-72-1181 INJECTION PUMP ASS'Y |
| 6D125E, S6D125E |
| |
| 6211-72-1121 INJECTION PUMP ASS'Y |
| SA6D140E |
| |
| 6732-71-1220 INJECTION PUMP ASS'Y |
| S4D102E |
| |
| 6205-71-1350 INJECTION PUMP ASS'Y,(SEE FIG.A4010-B0A5) |
| S4D95LE |
| |
| 6151-71-1641 INJECTION PUMP A. |
| S6D125 |
| |
| 6151-71-1640 INJECTION PUMP A. |
| S6D125 |
| |
| 6151-71-1513 INJECTION PUMP A. |
| S6D125 |
| |
| 6151-71-1511 INJECTION PUMP A. |
| S6D125 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
8973060449 |
[1] |
PUMP ASM; INJ |
|
| 002(A). |
281510500 |
[1] |
BOLT; INJ PUMP |
M10X50 FLANGE |
| 002(B). |
281512700 |
[1] |
BOLT; INJ PUMP |
M12X70 FLANGE |
| 002(C). |
281512000 |
[1] |
BOLT; INJ PUMP |
M12X100 FLANGE |
| 9 |
410106300 |
[3] |
STUD; CLIP |
M6X30 L=38 |
| 16 |
8973718311 |
[1] |
PIPE; INJ NO.1 |
|
| 17 |
8973734171 |
[1] |
PIPE; INJ NO.2 |
|
| 18 |
8973718331 |
[1] |
PIPE; INJ NO.3 |
|
| 19 |
8973718341 |
[1] |
PIPE; INJ NO.4 |
|
| 31 |
8973297032 |
[4] |
NOZZLE ASM; INJ |
|
| 31 |
8981518371 |
[4] |
NOZZLE ASM; INJ |
|
| 36 |
8976009250 |
[4] |
GASKET; RETURN PIPE,NOZZLE HOLDER |
A ID=8.3<BR>ALSO INCLUDED IN GASKET SET(ENG & HEAD) |
| 36 |
8980659920 |
[4] |
GASKET; RETURN PIPE,NOZZLE HOLDER |
ID=8.3<BR>ALSO INCLUDED IN GASKET SET(ENG & HEAD) |
| 61 |
8980088950 |
[4] |
BOLT; CLAMP NOZZLE HOLDER |
|
| 63 |
8973060810 |
[1] |
PIPE; FUEL,NOZZLE LEAK OFF |
|
| 066(A). |
8976014472 |
[4] |
GASKET; INJ NOZZLE |
A ALSO INCLUDED IN GASKET SET(ENG & HEAD) |
| 066(A). |
8980792480 |
[4] |
GASKET; INJ NOZZLE |
ALSO INCLUDED IN GASKET SET(ENG & HEAD) |
| 066(B). |
8941734120 |
[4] |
GASKET; INJ NOZZLE |
ID=23.3<BR>ALSO INCLUDED IN GASKET SET(ENG & HEAD) |
| 068(A). |
8973301181 |
[4] |
CLIP; INJ PIPE |
|
| 068(B). |
8973301191 |
[4] |
CLIP; INJ PIPE |
|
| 071(A). |
280508160 |
[1] |
BOLT; BRKT |
M8X16 FLANGE |
| 071(B). |
280506100 |
[2] |
BOLT; BRKT |
M6X10 FLANGE |
| 071(C). |
280508400 |
[1] |
BOLT; BRKT |
M8X40 FLANGE |
| 071(D). |
280508500 |
[1] |
BOLT; BRKT |
M8X50 FLANGE |
| 80 |
8976016990 |
[1] |
BRACKET; PUMP |
|
| 87 |
286508300 |
[3] |
BOLT; PUMP |
M8X30 FLANGE |
| 94 |
8973060741 |
[4] |
BRACKET; INJ NOZZLE |
A |
| 94 |
8980289991 |
[4] |
BRACKET; INJ NOZZLE |
|
| 110 |
911801060 |
[4] |
NUT; CLIP |
M6 FLANGE |
| 120 |
8973060842 |
[1] |
BRACKET; INJ PIPE |
|
| 124 |
1096750371 |
[4] |
BOLT; EYE LEAK OFF PIPE |
M8X18 FLANGE |
| 154 |
9095611110 |
[4] |
GASKET; CONNECTOR |
ID=11<BR>ALSO INCLUDED IN GASKET SET(ENG & HEAD) |
| 158 |
911801100 |
[2] |
NUT; INJ PUMP |
M10 FLANGE |
| 161 |
8973632370 |
[2] |
STUD; INJ PUMP |
M10X46.5 L=58.5 |
| 168 |
8973241950 |
[1] |
BRACKET; FUEL PIPE |
|
| 176 |
8980112690 |
[1] |
BOLT; EYE, FEED PUMP |
|
| 199(A). |
1096300830 |
[3] |
GASKET; EYE BOLT |
ID=10.2<BR>ALSO INCLUDED IN GASKET SET(ENGINE) |
| 199(B). |
1096300850 |
[3] |
GASKET; EYE BOLT |
ID=14.2 OD=19.2<BR>ALSO INCLUDED IN GASKET SET(ENGINE) |
| 199(C). |
8976022180 |
[2] |
GASKET; EYE BOLT |
ALSO INCLUDED IN GASKET SET(ENGINE) |
| 200 |
8980087891 |
[1] |
PIPE; FUEL FEED |
|
| 205 |
8980235810 |
[1] |
SENSOR; FUEL TEMP |
|
| 210 |
8973125093 |
[1] |
PIPE; INJ,C/R |
|
| 211 |
8973060633 |
[1] |
RAIL ASM; COMMON |
|
| 216 |
8976021730 |
[1] |
BOLT; EYE |
|
| 219 |
1096233000 |
[1] |
GASKET |
C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 219 |
8980318440 |
[1] |
GASKET |
ALSO INCLUDED IN GASKET SET(ENGINE) |
| 226 |
8973536821 |
[1] |
PIPE; FUEL |
C |
| 226 |
8981263320 |
[1] |
PIPE; FUEL |
|
| 265 |
8980210540 |
[1] |
VALVE; FEED PUMP |
C |
| 265 |
8980552890 |
[1] |
VALVE; FEED PUMP |
A |
| 265 |
8980749550 |
[1] |
VALVE; FEED PUMP |
|
| 282 |
8973241940 |
[1] |
BRACKET; COMMON RAIL |
A |
| 282 |
8981571150 |
[1] |
BRACKET; COMMON RAIL |
|
| 283 |
280508250 |
[1] |
BOLT; COMMON RAIL |
M8X25 FLANGE |
| 354 |
280808160 |
[2] |
BOLT; FUEL PIPE |
A M8X16 FLANGE |
| 354 |
280508160 |
[2] |
BOLT; FUEL PIPE |
M8X16 FLANGE |
| 377 |
8973742831 |
[2] |
BRACKET; HARNESS |
|
| 378 |
8976016981 |
[1] |
GEAR; PUMP |
|
| 382 |
8973753840 |
[1] |
KEY; DRIVE SHAFT |
|
| 383 |
8971414690 |
[1] |
NUT; DRIVE SHAFT |
|
| 424 |
8980436870 |
[1] |
OVERHAUL KIT; SUPPLY PUMP |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
