| Category |
Pilot Valve |
| Name |

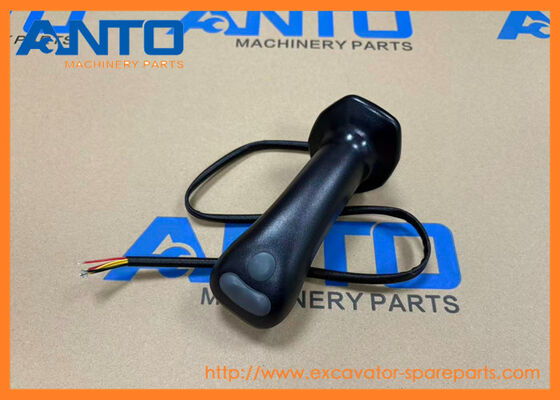

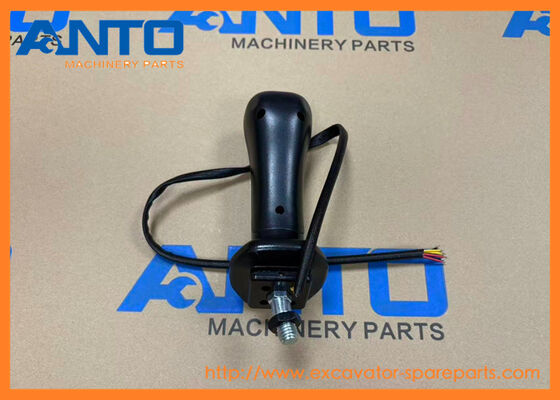

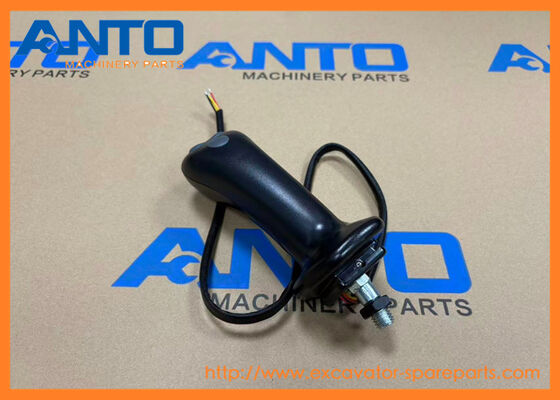

Joystick Handle Control |
| Parts No |
136-1206 1361206 |
| Machine Number |
312B L 315B 320B FM LL 320B L 322B L 325B L 330B L |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
1. Signal Conversion: Converts mechanical lever displacement into proportional hydraulic pressure signals (0–4 MPa) or electrical voltage signals (0–5 V) for system control.
2. Multi-Action Operation: Supports simultaneous control of 2–3 actuators (e.g., boom lifting + bucket tilting) for compound work efficiency.
3. Safety Protection: Integrated with a neutral position lock and emergency stop trigger to prevent accidental operation during startup or maintenance.
EXCAVATOR 312B L 315B 320B FM LL 320B L 322B L 325B L 330B L 345B II 345B L
MINI HYD EXCAVATOR 307B
WHEELED EXCAVATOR M313C M315C M316C M318 M318C M318C MH M320 M322C C.ater.pillar.
- More other control applied to C A T heavey machine
| 1385190 CONTROL GP-ENGINE ELECTRONIC |
| 307, 307B, 307C, 308C, 313B, 315B, 315B FM L, 315C, 317B LN, 318B |
| |
| 1567172 CONTROL GP-ENGINE ELECTRONIC |
| 24H, 3408E, 3412E, 5110B, 631D, 631E, 631G, 633E II, 637E, 637G, 651E, 657E, 69D, 769C, 769D, 771D, 773B, 773D, 773E, 775B, 775D, 775E, 834B, 836, 844, 988B, 988F II, 990, 990 II, 992C, AD45, AE40 II,... |
| |
| 1648285 CONTROL GP-ENGINE & HYD PUMP |
| 320B |
| |
| 1453082 CONTROL GP-ENGINE & HYD PUMP |
| 345B, 345B L |
| |
| 2218745 CONTROL GP-MACHINE |
| 345B, 345B L |
| |
| 1434840 CONTROL GP-ENG RATINGS ELEK |
| 365B, 365B L |
| |
| 1852547 CONTROL GP-ELECTRONIC |
| 365B L |
| |
| 2115684 CONTROL GP-MONITOR |
| 365B, 365B L |
| |
| 1777644 CONTROL GP-MACHINE |
| 345B II, 345B II MH, W345B II |
| |
| 2115546 CONTROL GP-MACHINE |
| 345B II, 345B II MH, W345B II |
| |
| 2115539 CONTROL GP-MACHINE |
| 345B II |
| |
| 1573191 CONTROL GP |
| 345B L |
| |
| 7W8944 CONTROL GP-MANUAL START/STOP |
| 3208, 3304, 3306, 3406B, 3408, 3412, 3508, 3512, 3516, G3306, G3406, G3408, G3508, G3512, G3516 |
| |
| 1833159 CONTROL GP-HYDRAULIC HAND |
| 428D, 438D |
| |
| 3186629 CONTROL AR-QUICK COUPLER |
| 938H |
| |
| 9Y2273 CONTROL GP-ENGINE ELECTRONIC |
| 3406B |
| |
| 1219300 CONTROL GP-TRANSMISSION |
| 950G, 950G II, 950H, 962G, 962G II, 962H, 966G, 966G II, 966H, 972G, 972G II, 972H, 986H, 988H, IT62G, IT62G II, IT62H |
| |
| 3469062 CONTROL AR-HYDRAULIC |
| 120M 2, 12M 2, 140M 2, 160M 2 |
| |
| 7U4599 CONTROL GP-BRAKE (K)(REAR) |
| D40D |
| |
| 2970292 CONTROL AR-AUXILIARY |
| 320D, 320D L, 323D L |
| |
| 5T4493 CONTROL GP-ANTISPIN |
| 789, 789B |
| |
| 1771065 CONTROL GP-TRANSMISSION HYD |
| 966G, 972G |
| |
| 1058869 CONTROL GP-ENG RATINGS ELEK |
| 3408B, 3412 |
| |
| 3T4993 CONTROL GP-WINCH |
| D10N, D10R, D8L, D9L, D9N |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
096-1622 |
[1] |
BUSHING-TERMINAL |
|
| 2 |
131-5863 |
[2] |
SPRING |
|
| 3 |
118-4083 |
[2] |
SEAT |
|
| 4 |
095-1586 |
[4] |
SEAL-O-RING |
|
| 5 |
118-4086 |
[4] |
ROD |
|
| 6 |
131-5915 M |
[1] |
NUT-SPECIAL |
|
| 7 |
4I-6365 |
[1] |
JOINT |
|
| 8 |
4I-6366 |
[1] |
PLATE |
|
| 9 |
118-4087 |
[4] |
SPRING |
|
| 10 |
094-0872 |
[1] |
PLATE |
|
| 11 |
099-6136 |
[8] |
WASHER (5.1X12.5X1-MM THK) |
|
| 12 |
118-4085 |
[2] |
SEAT |
|
| 13 |
131-5864 |
[2] |
SPRING |
|
| 14 |
099-6137 |
[4] |
WASHER (6.1X9X0.2-MM THK) |
|
| 15 |
118-4082 |
[4] |
SPRING (STANDARD) |
|
| |
|
|
-OR- |
|
| |
7I-7224 |
[4] |
SPRING (OPTIONAL) |
|
| |
|
|
(REDUCES OPERATING FORCE BY 10%) |
|
| 16 |
131-5862 |
[1] |
BODY AS |
|
| 17 |
096-1621 |
[1] |
SEAL-O-RING |
|
| 18 |
087-4969 |
[1] |
PLATE |
|
| 19 |
7Y-0468 |
[1] |
PIN-SPRING |
|
| 20 |
096-4498 |
[2] |
WASHER-SEALING |
|
| 21 |
6V-5192 M |
[2] |
BOLT-SOCKET HEAD (M8X1.25X30-MM) |
|
| 22 |
096-1628 |
[4] |
PLUG |
|
| 23 |
094-0876 |
[4] |
SEAL |
|
| 24 |
4I-1764 |
[1] |
PLATE |
|
| 25 |
5B-9304 |
[2] |
SCREW-DRIVE (NO 2X3/16-IN) |
|
| 26 |
121-1563 |
[2] |
SEAT |
|
| 27 |
121-1631 |
[2] |
SEAT |
|
| |
|
|
AVAILABLE REPLACEMENT PART(S): |
|
| |
134-7059 |
[2] |
KIT-SPOOL (PILOT VALVE) |
|
| |
|
|
(FOR PORTS NO. 2 & 4. PROVIDES CONTROLLABILITY COMPARABLE TO A-SERIES MACHINES) |
|
| |
134-7060 |
[2] |
KIT-SPOOL (PILOT VALVE) |
|
| |
|
|
(FOR PORTS NO. 1 & 3. PROVIDES CONTROLLABILITY COMPARABLE TO A-SERIES MACHINES) |
|
| |
M |
|
METRIC PART |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
