| Category |
Cooling System |
| Name |

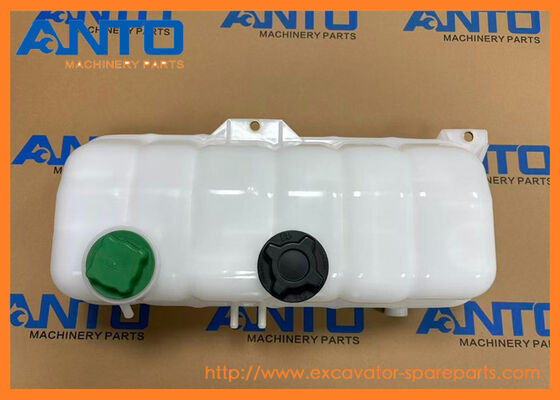

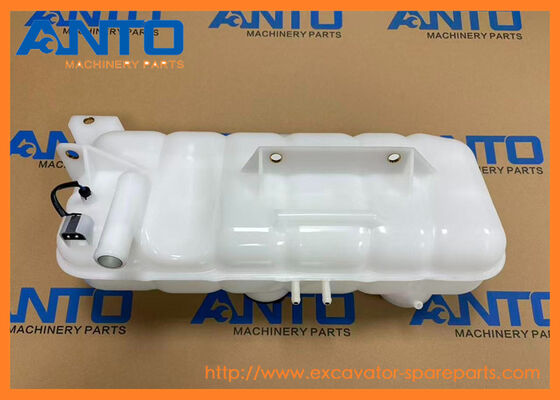

Water Tank |
| Parts No |
VOE20880604 20880604 |
| Machine Number |
EC140C EC140D EC160D EC180D EC210B EC220D |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Structural & Material Specifications
1.Tank Body
Material: UV-stabilized high-density polyethylene (HDPE)
Resistance: Withstands extreme temperatures (-40°C to +120°C), hydraulic oil corrosion, and chassis vibration
Capacity: 3.2 liters (0.85 US gallons)
Overall Dimensions: 320 mm (L) × 180 mm (W) × 240 mm (H) / 12.6 × 7.1 × 9.4 inches
2.Pressure Cap
Material: Reinforced nylon with a rubber sealing gasket
Pressure Rating: 1.1–1.3 bar (industry standard for construction machinery cooling systems)
Torque Requirement: 10–15 N·m for secure sealing (prevents pressure loss or coolant leakage)
3.Ports & Mounting
Inlet/Outlet Ports: Molded polypropylene (PP) with M20 × 1.5 metric threads, compatible with 19 mm (3/4 inch) coolant hoses
Mounting Brackets: Integrated steel-reinforced plastic lugs, designed for M8 bolt installation (torque to 25–30 N·m) to withstand heavy vibration during excavation/loading tasks
EXCAVATOR EC700B EC700BHR EC700C EC700CHR EC750D FB2800C FBR2800C Vo.lvo.
- More other expansion tank applied to V O L V O heavey machine
| VOE14644804 Expansion tank |
| EC360CHR, EC380DHR, EC380EHR, EC460CHR, EC480DHR, EC55B, EC55C, EC60C, EC700BHR, EC700CHR, EC80D, ECR58, ECR88, L30G, L35G |
| |
| VOE20880612 Expansion tank |
| EC330B, EC330C, EC340D, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, G900 MODELS, PL4608, PL4611 |
| |
| VOE955102 Expansion plug |
| L110E, L110F, L110G, L120C, L120C VOLVO BM, L120D, L120E, L120F, L120G, L150/L150C VOLVO BM, L150C, L150D, L150E, L150F, L150G, L180/L180C VOLVO BM, L180C, L180D, L180E, L180F, L180F HL, L180G, L180G ... |
| |
| VOE11715438 Expansion valve |
| MC110B, MC60B, MC70B, MC80B, MC90B |
| |
| VOE7192426 Expansion Plug |
| 5350 |
| |
| VOE15163859 Expansion tank |
| EC250D, EC300D, EC350D, PL3005D |
| |
| ZM2907457 Expansion Valve |
| L30, L32, L35, L40, L45 |
| |
| VOE11110726 Expansion tank |
| EC240B, EC290B |
| |
| VOE15047209 Expansion tank |
| EC160C, EC180C, EC200B, EC210C, EC235C, EC240B, EC240C, EC250D, EC290B, EC290C, ECR235C, ECR305C, EW140C, EW160C, EW180C, EW210C, EW230C, FC2121C, FC2421C, FC2924C, FC3329C, PL3005D |
| |
| VOE844062 Expansion tank |
| EC200 ÅKERMAN, EC230 ÅKERMAN, EC230B, EC230B ÅKERMAN, EC300 ÅKERMAN, EC620 ÅKERMAN, EW200 ÅKERMAN, EW230 ÅKERMAN, EW230B |
| 621H, 621K, 623H, 623K, 623K LRC, 627H, 627K, 627K LRC, 814F, 815F, 816F, 824G, 825G, 826G, 918F, 924F, 938F, 950F, 950F II, 950G, 960F, 962G, 966F, 966F II, 966G, 970F, 972G, 980G, IT18F, IT24F, IT28... |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
VOE14536054 |
[1] |
Hose |
|
| 2 |
VOE14536055 |
[1] |
Hose |
|
| 3 |
VOE14536053 |
[1] |
Hose |
|
| 4 |
VOE14531213 |
[1] |
Tube |
|
| 5 |
VOE14523898 |
[2] |
Stay |
|
| 6 |
VOE14531212 |
[1] |
Guard |
SER NO 10001-10029 |
| 7 |
VOE14531037 |
[1] |
Plate |
|
| 8 |
VOE20880604 |
[1] |
Expansion tank |
|
| |
VOE1674083 |
[1] |
Cap |
|
| |
VOE20880602 |
[1] |
Filler cap |
|
| |
VOE8140024 |
[1] |
Sensor |
|
| 9 |
VOE14532476 |
[2] |
Washer |
|
| 10 |
VOE992042 |
[2] |
Plain washer |
|
| 11 |
VOE943470 |
[5] |
Hose clamp |
|
| 12 |
SA9312-10200 |
[2] |
Hose clamp |
|
| 13 |
VOE14883762 |
[6] |
Hose clamp |
SER NO 10001-10029 |
| |
VOE14881507 |
[6] |
Hose clamp |
SER NO 10030- |
| 14 |
SA9315-01602 |
[0006] |
Insulating clip |
|
| 15 |
VOE13965179 |
[3] |
Screw |
SER NO 10001-10029 |
| 16 |
VOE946441 |
[3] |
Flange screw |
|
| 17 |
VOE946471 |
[0021] |
Flange screw |
|
| 18 |
VOE955923 |
[4] |
Spring washer |
|
| 19 |
VOE14880918 |
[1] |
Weatherstrip |
|
| 20 |
VOE14880925 |
[1] |
Weatherstrip |
|
| 21 |
VOE14880568 |
[1] |
Hose |
|
| 22 |
VOE14880575 |
[1] |
Hose |
|
| 23 |
SA9962-00944 |
[1] |
Cooling hose |
S/N 10001-10492 |
| |
VOE14882302 |
[1] |
Cooling hose |
S/N 10493- |
| 24 |
VOE14881368 |
[1] |
Hose |
|
| 25 |
VOE997446 |
[4] |
Hexagon screw |
|
| 26 |
VOE945408 |
[4] |
Flange nut |
SER NO 10001-10029 |
| |
VOE971095 |
[1] |
Flange nut |
SER NO 10030- |
| 27 |
VOE1674454 |
[3] |
Washer |
SER NO 10001-10029 |
| 28 |
SA9315-17401 |
[1] |
Clip |
|
| 29 |
SA9315-14801 |
[1] |
Clip |
|
| 30 |
VOE14536064 |
[1] |
Guard |
SER NO 10030- |
| 31 |
VOE14536065 |
[1] |
Guard |
SER NO 10030- |
| 32 |
VOE14549923 |
[1] |
Fan Shroud |
|
| 33 |
VOE992040 |
[12] |
Plain washer |
|
| 34 |
VOE955922 |
[12] |
Spring washer |
|
| 35 |
VOE997434 |
[12] |
Hexagon screw |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
