| Category |
JCB Spare Parts |
| Name |

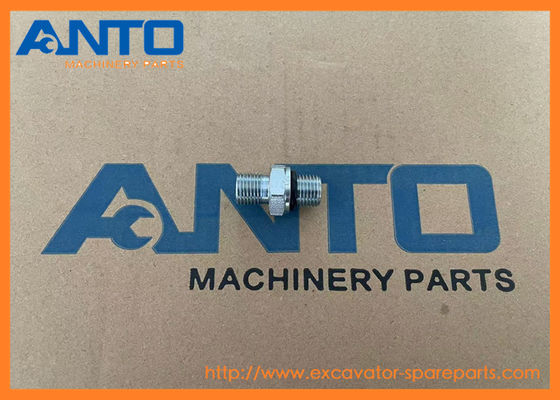

Adaptor |
| Parts No |
1604/2051 |
| Machine Number |
3CX 4CX JS130 JS145 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Acts as a "bridge" between two incompatible components (e.g., a hose with BSPP thread and a valve with NPT thread) |
| 2. Threaded/flanged ends mate securely with the respective components, creating a sealed pathway for fluids or a stable mechanical joint |
| 3. Maintains structural integrity under high pressure and vibration to prevent leaks or component separation |
| Core Functions |
1.Resolve component incompatibility (thread size, port type, or connection style) in JCB equipment systems |
| 2.Ensure leak-free fluid transfer in hydraulic, fuel, or engine circuits |
| 3.Provide stable mechanical connection for sensors, gauges, or auxiliary parts |
| 4.Simplify maintenance by enabling easy replacement of mismatched components |
LOADERS 3CX 4CX JS130 JS145 JCB
- More other adaptor applied to JCB heavey machine
| 458/20611 Adaptor hose |
| JCB |
| |
| 334/Y9097 Adaptor Scavenge |
| JCB |
| |
| 816/60068 Adaptor |
| JCB |
| |
| 816/90006 Adaptor filtered M/M |
| JCB |
| |
| 816/90618 Adaptor elbow 1/4 |
| JCB |
| |
| 816/13369 Adaptor SAE/SAE |
| JCB |
| |
| 1620/2058 Adaptor 3/4BSP x 7/8SAE M/M |
| JCB |
| |
| 816/15139 Adaptor M10 x 1/4"BSP |
| JCB |
| |
| 816/25056 Adaptor |
| JCB |
| |
| 816/90040 Adaptor Tee |
| JCB |
| |
| 1620/2055 Adaptor 39.5mm Long. M/M 1/2"BSP x 7/8"SAE |
| JCB |
| |
| 45/908000 Adaptor pressure test point 9/16-18UNF Male |
| JCB |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
331/15141 |
[1] |
Bracket Mounting Engine control |
|
| 1 |
335/04856 |
[1] |
Bracket throttle control |
|
| 2 |
1316/0508Z |
[4] |
Screw M12 x 30mm |
|
| 3 |
JHP0042 |
[4] |
Washer M12 |
|
| 4 |
1391/3410Z |
[1] |
Capscrew |
|
| 5 |
1371/0301Z |
[1] |
Nut High Strength, M10 |
|
| 6 |
331/14519 |
[1] |
Actuator Cylinder slave |
|
| 7 |
1316/0203Z |
[2] |
Screw |
|
| 9-3. |
KHH0156 |
[1] |
Spring assembly |
|
| 9-1. |
KHH0157 |
[1] |
Coupling cylinder throttle |
|
| 9-2. |
JHH0017 |
[1] |
Bolt |
|
| 9-3. |
KHH0159 |
[1] |
Spring compression |
|
| 9-4. |
KHH0130 |
[2] |
Collar special |
|
| 9-5. |
380A0220Z |
[1] |
Ring snap |
|
| 9-6. |
1420/0006Z |
[1] |
Washer (M6) |
|
| 10 |
JHH0161 |
[1] |
Rod threaded |
|
| 14 |
JHH0113 |
[1] |
Rod end |
|
| 15 |
1371/0201Z |
[1] |
Nut |
|
| 16 |
1425/0007Z |
[1] |
Washer spring M8 |
|
| 17 |
331/15144 |
[1] |
Lever Engine control |
|
| 18 |
331/15142 |
[1] |
Shaft Engine control |
|
| 18 |
331/28967 |
[1] |
Shaft engine control |
|
| 18 |
M.S.S |
[1] |
Multi Supersession |
NLA use items 18A to 18H |
| 18 |
|
|
'See Remark' |
see TI 11/120 for fitting instructions |
| 18A. |
716/30180 |
[1] |
Relay potentiometer |
|
| 18B. |
331/34610 |
[1] |
Sleeve adaptor |
|
| 18C. |
831/10237 |
[1] |
Bush Flanged |
|
| 18D. |
1391/9402 |
[2] |
Capscrew |
|
| 18E. |
721/11283 |
[1] |
Harness link throttle sensor |
|
| 18F. |
331/34297 |
[1] |
Cover throttle control |
|
| 18G. |
1316/0408Z |
[10] |
Screw M10x30 |
|
| 18H. |
231/79901 |
[1] |
Spacer |
|
| 19 |
831/10210 |
[1] |
Bush Bearing |
|
| 20 |
1390/0301Z |
[2] |
Screw grub |
|
| 21 |
716/30069 |
[1] |
Sensor Throttle |
|
| 21 |
716/92300 |
[1] |
Relay potentiometer |
|
| 22 |
1315/9409Z |
[2] |
Screw set |
|
| 23 |
1425/0004Z |
[2] |
Washer spring |
|
| 24 |
928/60027 |
[1] |
Valve Solenoid Proportional |
|
| 25 |
1391/3212Z |
[2] |
Capscrew M6 X 50 |
|
| 27 |
KMJ0707 |
[2] |
Adapter |
|
| 28 |
1406/0011 |
[4] |
Washer Bonded (1/4") |
|
| 29 |
830/10516 |
[1] |
Connector Pipe |
|
| 29 |
627/10016 |
[1] |
Hose 1/4"STx135x480mm |
|
| 30 |
1604/0002 |
[2] |
Adapter |
|
| 30 |
1604/2051 |
[2] |
Adaptor |
|
| 31 |
JNJ0210 |
[1] |
Hose nylon, white/yellow 1/4" 180/90 1650mm |
|
| 32 |
KRJ3895 |
[1] |
Hose 1/4"BSP ST-90 x 350mm |
|
| 33 |
716/30091 |
[1] |
Solenoid Engine stop |
|
| 34 |
KHR0736 |
[2] |
Screw pan head |
|
| 35 |
910/60057 |
[1] |
Cable Engine stop |
|
| 35 |
910/60140 |
[1] |
Cable engine stop solenoid |
|
| 36 |
910/60084 |
[1] |
Cable engine control |
|
| 37 |
JHH0112 |
[2] |
Rod end |
|
| 38 |
1371/0101Z |
[2] |
Nut high strength |
|
| 39 |
1425/0006Z |
[2] |
Washer Spring (M6) |
|
| 40 |
KAR0016 |
[2] |
Tie Cable |
|
| 40 |
826/01144 |
[2] |
Tie Cable 200mm |
|
| 41 |
331/24106 |
[1] |
Cover engine control |
|
| 42 |
1316/0205Z |
[2] |
Screw |
|
| 43 |
02/800390 |
[1] |
Bracket |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
