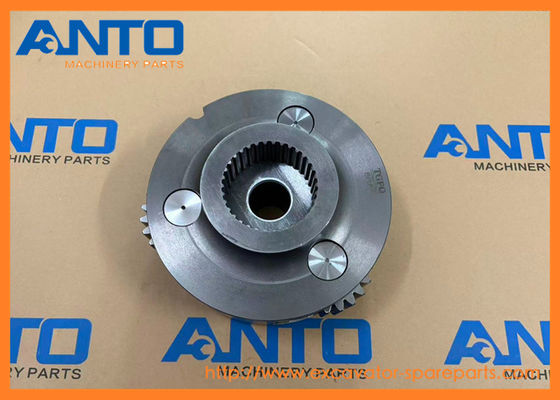

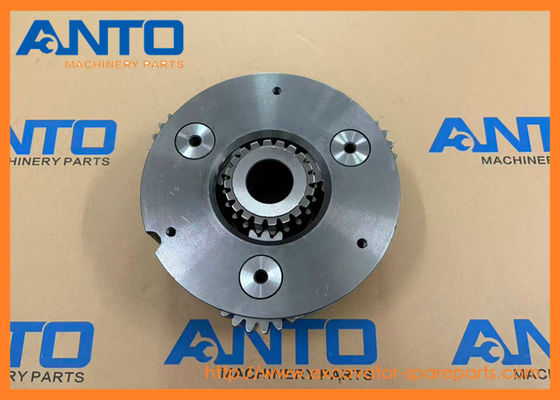

- 39Q6-12250 Planetary Carrier Assy HYUNDAI Excavator Spare Parts Fitting For R160LC9S R180LC9
| Name |
Planetary Carrier Assy |
| Parts No |
39Q6-12250 |
| Machine Model |
R215LC7 RD210-7 RD210-7V RD220-7 |
| Category |
Swing Ruduction Gear |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
1.The hydraulic motor drives the sun gear, which rotates the planetary gears mounted on the carrier.
2.The planetary gears simultaneously spin on their own axes and revolve around the sun gear, meshing with the ring gear to produce a lower output speed and higher torque.
3.The carrier then transfers this increased torque to the slewing pinion, which rotates the upper structure of the excavator.
7-SERIES CRAWLER EXCAVATOR R215LC7 RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R160W9A R170W9 R180W9A R180W9S R210W-9 R210W9A R210W9AMH R210W9MH R210W9S
F-SERIES CRAWLER EXCAVATOR HX160L HX220L HX220NL
F-SERIES WHEEL EXCAVATOR HW210 Hyundai
- More other carrier parts fit for HYUNDAI machine
| XKAQ-00653 CARRIER 1 ASSY |
| R110-7, R110-7A, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| |
| ZGAQ-04465 CARRIER-PLANET |
| R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S |
| |
| ZGAQ-04466 CARRIER-PLANET |
| R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S |
| |
| ZGAQ-03984 CARRIER-PLANETARY |
| R170W9S, R180W9S |
| |
| 39Q6-12190 CARRIER 2 |
| HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9... |
| |
| 39Q6-12260 CARRIER NO.1 |
| HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9... |
| |
| 39Q6-12180 CARRIER ASSY KIT 1 |
| HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W... |
| |
| 39Q6-42190 CARRIER 2 |
| HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210... |
| |
| 39Q6-42260 CARRIER 1 |
| HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210... |
| |
| 39Q6-42250 CARRIER ASSY KIT 1 |
| HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210... |
| |
| 39Q6-42180 CARRIER ASSY KIT 2 |
| HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
39K6-10150 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TYPE 1 |
| *. |
39K6-10151 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TYPE 1 |
| *. |
38K6-10150 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TYPE 2 |
| *. |
38K6-10151 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TYPE 2 |
| *-2. |
39K6-12100 |
[1] |
SWING REDUCTION GEAR |
|
| *-2. |
39K6-12101 |
[1] |
SWING REDUCTION GEAR |
|
| 1 |
39Q6-12110 |
[1] |
GEAR-RING |
|
| 2 |
39K6-12120 |
[1] |
SHAFT-DRIVE |
|
| 3 |
39Q6-12130 |
[1] |
BEARING-TAPER.MAIN |
|
| 4 |
39Q6-12140 |
[1] |
BEARING-TAPER |
|
| 5 |
39Q6-12150 |
[1] |
NUT-RING |
|
| 6 |
39Q6-12161 |
[1] |
PLATE-LOCK |
|
| 7 |
S017-120166 |
[4] |
BOLT-HEX |
|
| 8 |
39Q6-12171 |
[1] |
CASING |
|
| 8 |
39Q6-12172 |
[1] |
CASING |
|
| 9 |
S109-100306 |
[10] |
BOLT-SOCKET |
|
| K10. |
39Q6-12190 |
[1] |
CARRIER 2 |
|
| K11. |
39Q6-12200 |
[3] |
GEAR-PLANETARY 2 |
|
| K12. |
39Q6-12210 |
[6] |
BEARING-NEEDLE 2 |
|
| K13. |
39Q6-12220 |
[6] |
WASHER-THRUST 2 |
|
| K14. |
39Q6-12230 |
[3] |
PIN-CARRIER 2 |
|
| K15. |
S472-800364 |
[3] |
PIN-SPRING |
|
| K16. |
39Q6-12240 |
[1] |
GEAR-SUN 2 |
|
| K17. |
39Q6-12260 |
[1] |
CARRIER 1 |
|
| K18. |
39Q6-12271 |
[3] |
GEAR-PLANETARY 1 |
|
| K19. |
39Q6-12280 |
[3] |
BEARING-NEEDLE 1 |
|
| K20. |
39Q6-12290 |
[3] |
WASHER-THRUST 1,UPP |
|
| K21. |
39Q6-12300 |
[3] |
WASHER-THRUST 1,LOW |
|
| K22. |
39Q6-12310 |
[3] |
PIN-CARRIER 1 |
|
| K23. |
S472-600364 |
[3] |
PIN-SPRING |
|
| K24. |
39Q6-12320 |
[1] |
GEAR-SUN 1 |
|
| K25. |
39Q6-12330 |
[2] |
PLATE-THRUST |
|
| 26 |
39Q6-12340 |
[1] |
SLEEVE |
|
| 27 |
S631-120001 |
[1] |
O-RING |
|
| 28 |
39Q6-12350 |
[1] |
SEAL-OIL |
|
| 29 |
39Q6-41450 |
[2] |
PIN-PARALLEL |
|
| 30 |
S109-16045D |
[12] |
BOLT-SOCKET |
|
| 31 |
39K6-12360 |
[1] |
NAME PLATE |
|
| 31 |
39K6-12361 |
[1] |
NAME PLATE |
|
| 32 |
39Q6-41800 |
[2] |
RIVET |
|
| 33 |
P220-430204 |
[1] |
PLUG-HEX |
|
| *-1. |
39K6-11100 |
[1] |
SWING MOTOR UNIT |
TYPE 1 |
| *-1. |
38K6-11100 |
[1] |
SWING MOTOR UNIT |
TYPE 2 |
| *-1. |
38K6-11100 |
[1] |
SWING MOTOR UNIT |
TYPE 2 |
| K1. |
39Q6-12180 |
[1] |
CARRIER ASSY KIT 1 |
SEE ILLUST |
| K2. |
39Q6-12250 |
[1] |
CARRIER ASSY KIT 2 |
SEE ILLUST |
