| Application |
C A T Excavator Spare Parts |
| Name |

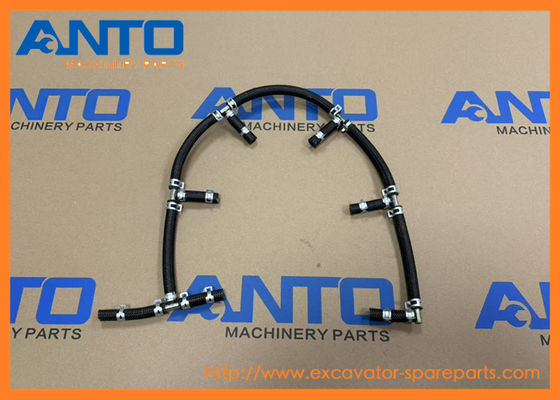

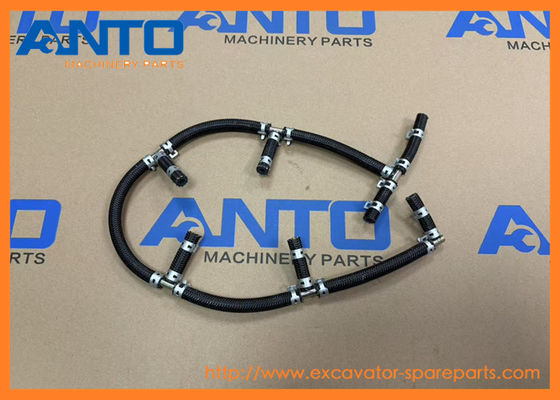

Hose |
| Parts No |
212-8606 2128606 |
| Model |
320C 320C FM 320C L 320D 320D LRR 321C 323DL 323D LN
|
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
1.Precise Fuel Delivery: Ensures a consistent and accurate flow of fuel to each injector, enabling optimal combustion and engine performance.
2.Pressure Containment: Withstands high injection pressures without leakage, maintaining the integrity of the fuel system under extreme operating conditions.
3.Vibration and Wear Resistance: The reinforced construction dampens engine vibrations and resists abrasion, preventing premature failure due to mechanical stress.
4.Chemical Compatibility: Resists degradation from diesel fuel additives and contaminants, ensuring long service life and reliability.
EXCAVATOR 320C 320C FM 320C L 320D 320D LRR 321C 323DL 323D LN
- More hose parts supplied to C A T machine
| 5P1420 HOSE |
| 120M, 12M, 216, 216B, 216B3, 226B, 226B3, 228, 2290, 232B, 235C, 236, 236B, 236B3, 236D, 2384C, 2390, 2391, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 2484C, 2491, 252B, 252B3, 256C, 257B, ... |
| |
| 7Y1976 HOSE-WATER |
| 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 303, 303.5, 303.5C, 303.5D, 303.5E, 303C CR, 303E CR, 304, 304.5, 304C CR, 304D CR, 304E, 305, 305.5, 305.5D, 305.5E, 305C CR, 305D CR, 30... |
| |
| 4I3823 HOSE AS |
| 315, 315B L, 317, 317B LN, 318C, 319C, 320 L, 320B, 320B L, 320B U, 320C, 320N, 321B, 321C, 322, 322 FM L, 322 LN, 322B, 322B L, 322B LN, 322C, 328D LCR, 330, 330 FM L, 330 L |
| |
| 4I5556 HOSE AS |
| 311B, 315B, 315C, 315D L, 316E L, 318B, 318C, 318D2 L, 318E L, 320, 320 L, 320B, 320B FM LL, 320C, 320D, 320D L, 320D2, 320D2 L, 320E, 320E L, 320E LN, 320N, 321B, 321D LCR, 323D L, 323D LN, 323D SA, ... |
| |
| 1027685 HOSE AS |
| 307C, 308C, 315C, 315D L, 319D L, 320B, 320C, 320C FM, 320C L, 320D, 320D L, 320D LRR, 320D RR, 320E LRR, 321D LCR, 322, 322 FM L, 322B, 322B L, 322C, 322C FM, 323D L, 324D FM, 325, 325 L, 325 LN, 325... |
| |
| 4I3511 HOSE AS |
| 311C, 312C, 315C, 318C, 319C, 320B, 320C, 320C FM, 320D, 320D FM RR, 320D L, 320D LRR, 320D RR, 321C, 321D LCR, 322B, 322C FM, 323D LN, 324D, 324D LN, 325 LN, 325C, 325D, 325D FM LL, 325D L, 325D MH, ... |
| |
| 1021157 HOSE AS |
| 314C, 318C, 319C, 320B, 320B U, 320C, 321C, 322, 322 FM L, 322 LN, 322B, 322B L, 322B LN, 322C, 322C FM, 323D L, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325B, 325B L, 325C, 325C FM, 325C L, 325D, ... |
| |
| 1875954 HOSE AS |
| 316E L, 318C, 318E L, 319C, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 322C, 322C FM, 323D L, 323D LN, 323D2 L, 324D FM, 324D FM LL, 325C FM, 325D FM, 325D FM LL |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
1R-6573 |
[6] |
GASKET |
|
| 2 |
113-0363 |
[6] |
SUPPORT |
|
| 3 |
154-0489 |
[6] |
SEAL-RUBBER |
|
| 4 |
8T-4189 M |
[6] |
BOLT (M8X1.25X20-MM) |
|
| 5 |
212-8599 |
[1] |
PIPE |
|
| 6 |
212-8600 |
[1] |
PIPE |
|
| 7 |
212-8601 |
[1] |
PIPE |
|
| 8 |
212-8602 |
[1] |
PIPE |
|
| 9 |
212-8603 |
[1] |
PIPE |
|
| 10 |
212-8604 |
[1] |
PIPE |
|
| 11 |
212-8605 |
[1] |
PIPE |
|
| 12 |
094-9596 |
[2] |
CLAMP |
|
| 13 |
094-9597 |
[2] |
CLAMP |
|
| 14 |
5C-9553 M |
[2] |
BOLT (M6X1X16-MM) |
|
| 15 |
094-9581 |
[8] |
CLAMP |
|
| 16 |
6V-7357 M |
[4] |
BOLT (M6X1X25-MM) |
|
| 17 |
212-8606 |
[1] |
HOSE AS |
|
| 17A. |
094-7235 |
[1] |
CAP |
|
| 17B. |
096-0174 |
[3] |
CLIP-HOSE |
|
| 17C. |
195-8366 |
[2] |
FITTING |
|
| 17D. |
212-8497 |
[4] |
HOSE |
|
| 17E. |
195-8369 |
[4] |
FITTING |
|
| 17F. |
195-8372 |
[22] |
CLIP |
|
| 17G. |
195-8368 |
[6] |
HOSE |
|
| 17H. |
212-8607 |
[1] |
HOSE |
|
| 17I. |
217-5474 |
[1] |
HOSE |
|
| 18 |
7X-0796 |
[5] |
LOCKWASHER |
|
| 19 |
6V-8231 M |
[5] |
NUT (M10X1.25-THD) |
|
| 20 |
193-2702 |
[1] |
PIPE |
|
| 21 |
5I-7576 |
[1] |
FLANGE |
|
| 22 |
096-9529 |
[1] |
SEAL-O-RING |
|
| 23 |
5I-7743 |
[1] |
FITTING |
|
| 24 |
125-2983 |
[1] |
FITTING |
|
| 25 |
8T-4121 |
[4] |
WASHER-HARD (11X21X2.5-MM THK) |
|
| 26 |
5I-5108 M |
[2] |
BOLT (M8X1.25X18-MM) |
|
| 27 |
212-8509 |
[1] |
BRACKET |
|
| 28 |
8T-4179 M |
[1] |
BOLT (M12X1.75X20-MM) |
|
| 29 |
096-2501 |
[1] |
LOCKWASHER |
|
| 30 |
212-8499 |
[4] |
STUD |
|
| 31 |
5I-8070 |
[1] |
PIPE |
|
| 32 |
5I-8058 |
[1] |
CONNECTOR |
|
| 33 |
3B-4505 |
[8] |
LOCKWASHER |
|
| 34 |
096-2500 |
[6] |
LOCKWASHER |
|
| 35 |
239-6605 |
[1] |
PLATE |
|
| 36 |
239-6524 |
[1] |
CLAMP |
|
| 37 |
8T-4138 M |
[2] |
BOLT (M6X1X20-MM) |
|
| 39 |
233-1283 |
[1] |
CLAMP |
|
| |
M |
|
METRIC PART |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
