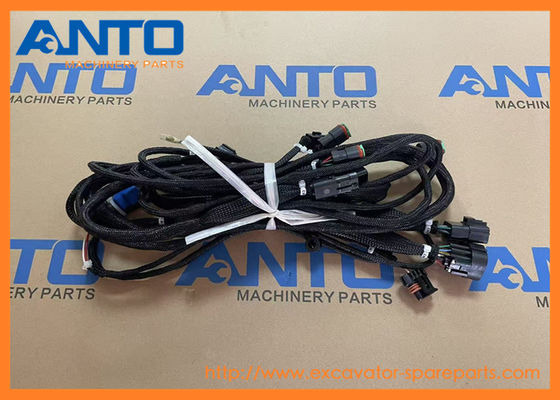

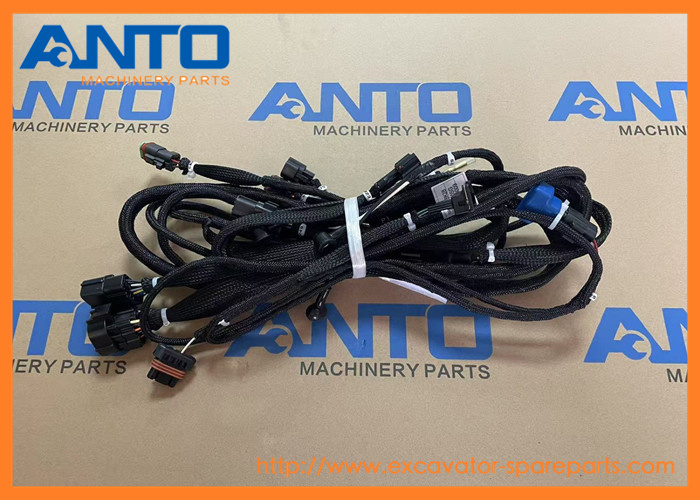

21Q6-18202 21Q618202 Harness Excavator Engine Parts Fitting For HYUNDAI R210LC9BC

• 21Q6-18202 21Q618202 Harness Excavator Engine Parts Fitting For HYUNDAI R210LC9BC

• Specification

• Function

Power Distribution to Engine/Powertrain Components
The harness acts as a "power conduit" to deliver electrical current (from the machine’s battery or alternator) to energy-dependent engine and powertrain parts. These components include:

1.Fuel injection system: Powers fuel injectors, the fuel pump, or the fuel pressure sensor—ensuring precise fuel delivery to the engine cylinders for combustion.

2.Ignition system (for gasoline-powered engines, less common in modern diesel construction equipment): Supplies power to spark plugs or ignition coils.

3.Engine sensors and actuators: Provides power to small but critical parts like the crankshaft position sensor, camshaft position sensor, or EGR (Exhaust Gas Recirculation) valve actuator.

• Application

9-SERIES CRAWLER EXCAVATOR R210LC9BC

• More harness parts Applied To HYUNDAI machine

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
1	21Q6-18200	[1]	HARNESS-ENGINE	CLUSTER TYPE 1
1	21Q6-18201	[1]	HARNESS-ENGINE	CLUSTER TYPE 1
1	21Q6-18202	[1]	HARNESS-ENGINE	CLUSTER TYPE 1
1	21Q6-16500	[1]	HARNESS-ENGINE	CLUSTER TYPE 2
1	21Q6-16501	[1]	HARNESS-ENGINE	CLUSTER TYPE 2
1-1.	21Q8-14600	[1]	RESISTOR	NOT SHOWN
2	21E9-00170	[13]	CLIP-HARNESS
3	21EH-30720	[1]	STRAP-EARTH
4	21N8-42050	[1]	RELAY-HEATER
5	21N6-30120	[1]	RELAY-START
6	S035-061526	[4]	BOLT-W/WASHER
7	S037-122526	[7]	BOLT-W/WASHER
8	S552-050203	[15]	CLAMP-BAND
9	21EA-50260	[1]	PACKING-TEMP SW
10	21EN-40100	[1]	SENDER-TEMP
11	S035-082026	[2]	BOLT-W/WASHER
12	21N4-01130	[1]	PLATE-CLIP
13	21N8-40071	[1]	HARNESS-RELAY
14	S285-06100B	[4]	NUT-FLANGED
15	21EA-50171	[1]	FITTING-TEMP SW
16	21N7-10070	[1]	ADAPTER-OIL PRESSURE
16-2.	21EN-00520	[1]	O-RING	NOT SHOWN
17	21E3-5001	[1]	SWITCH-ENG OIL PRESS
18	21Q6-15800	[1]	SENSOR-SPEED
18	21E3-0042	[1]	SENSOR-SPEED
18	21Q6-15800	[1]	SENSOR-SPEED
19	21N6-21240	[1]	CABLE(AIR HEAT-HEAT RY)
20	21N6-01511	[1]	CABLE(ALT-STARTER)
21	21Q6-41000-K	[1]	ALTERNATOR KIT	W/O PULLEY
21	21Q6-42001	[1]	ALTERNATOR ASSY	W/ PULLEY
21-1.	21Q6-41000	[1]	ALTERNATOR ASSY	NOT SHOWN
21-2.	21N8-43000	[1]	HARNESS-ALTERNATOR	NOT SHOWN
21	21Q6-42001	[1]	ALTERNATOR ASSY	W/ PULLEY
22	31L7-10200	[1]	CLAMP-TUBE
23	21Q6-16600	[1]	HARNESS-PUMP PS
24	21Q6-10850	[1]	COVER-STARTER RELAY
25	21Q6-10950	[1]	COVER-PREHEAT RELAY
